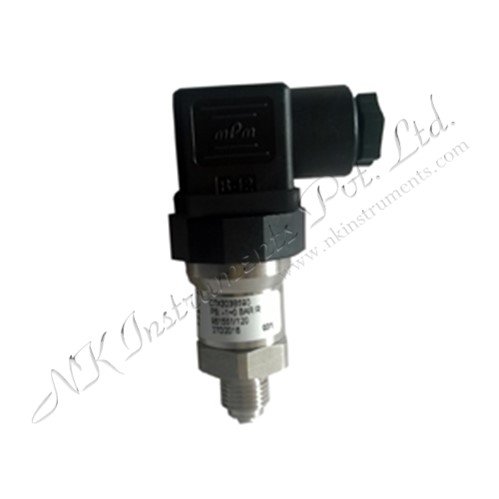

Compact type Pressure Transmitters are also known as Blind Pressure Transmitter, Pencil type Pressure Transmitters or, Miniature Pressure Transmitters.
Compact Pressure Transmitters are available in various ranges, accuracies, and the type of enclosures.
Indication : Without
Ranges : Various ranges from 0 to 100 mbar up to 0 to 700 bar
Output options : 4 to 20 mA, 0 to 10 Vdc, 1 to 5 Vdc or, 0.5 to 4.5 V dc under 5 V dc
Accuracy : +/- 0.1%, 0.2%, 0.25%, 0.4%, 0.5% of FS
Enclosure type : IP 65, IP 67, IP 68, ATEX certified.
Max. pressure : 1.5 Times of Working Pressure.
Zero and Span Adjustment : Without (It is possible only in specific ranges and types)
Process connection options : 1/4" BSP (M), 1/2" BSP (M), Flush Diaphragm, Tri clamp.
Operating Temperature : 0 to 100 (Standard) by using suitable accessories we can offer the same Pressure Transmitter for temperature up to 250° C
NK Instruments Pvt. Ltd. provides Complete Solutions through application of resourceful & cost effective Process Instruments.
We cover process instruments required for indication and control of process parameters like Pressure, Differential Pressure, Vacuum, Temperature, Level, Flow, Vibration, Moisture, Conductivity, TDS and Density.
