Online pH Electrode with Digital Indicator

In many of the Pharma and beverages industries, DM or, WFI water is used where pH has to be monitored. In Effluent and Sewage treatment also pH has to be monitored and maintained. In manual control systems the pH value of the fluid can be seen accurately in our pH Indicator unit..

We have Online glass tube type pH Electrode which we provide along with the panel mounted Digital pH Indicator. The electrode is provided along with the pH Holder which also works as guard for the glass tube type Online pH Electrode.

Details of Electrode :

Type of Electrode                :  Glass Tube type Electrode

Process Connections           :  3/8” BSP (M)

Electrode Holder                 :  PVC, PTFE or, SS

Electrode Holder Mounting   :  ¾” BSP (M)

Range                                :  0 to 14 pH

Resolution                          :  0.1

Max. Temperature               :  Electrode with PVC top cover up to 60 degree C

                                             Electrode with PTFE top cover up to 100 degree C

                                             Electrode with SS top cover up to 120 degree C

Max. Pressure                     :  6 bar

Electrical connection            :  Five meters cable with BNC connector

Approx. Length of the assembly: 120 mm

Details of Digital Indicator :

Mounting                           : Panel mounted

Power Supply                     : 230 V AC

Display                              : 4 digit, 7 segment LED display

Dimensions                        : 96 X 96 X 110 mm

Relay                                 : 1 nos. 5 A, 230 V AC (Optional)

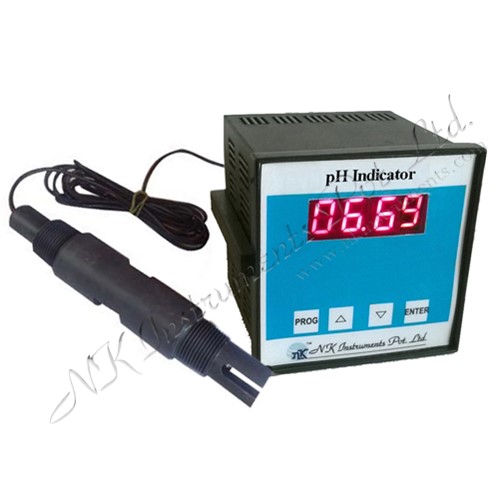

pH Indicator with Electrode
