pH Controller with Electrode

In many of the Pharma and beverages industries, DM or, WFI water is used where pH has to be monitored as well as controlled. In Effluent and Sewage treatment also pH has to be controlled using our Online pH Electrode and Controller..

We provide the glass tube type Online pH Electrode along with Digital pH Indicator with Relay.

Details of Electrode :

Type of Electrode                 :  Online Glass Tube type pH Electrode

Process Connections           :  3/8” BSP (M)

Electrode Holder                  :  PVC, PTFE or, SS

Electrode Holder Mounting   :  ¾” BSP (M)

Range                                   :  0 to 14 pH

Resolution                             :  0.1

Max. Temperature                 :  Electrode with PVC top cover up to 60 degree C

                                                 Electrode with PTFE top cover up to 100 degree C

                                                 Electrode with SS top cover up to 120 degree C

Max. Pressure                       :  6 bar

Electrical connection             :  Five meter cable with BNC connector

Approx. Length of the assembly : 120 mm

Details of Digital Indicating Controller :

Mounting                             : Panel mounted

Power Supply                     : 230 V AC

Display                                : 4 digit, 7 segment LED display

Dimensions                         : 96 X 96 X 110 mm

Relay                                   : 1 nos. 5 A, 230 V AC (Optional 2 relays)

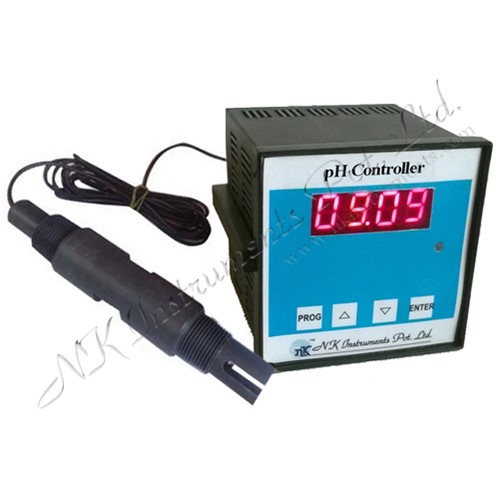

pH Indicating Controller with pH Electrode in PVC Holder
