Online pH Electrode

In many of the Pharma and Beverages industries, DM or, WFI water is used where pH has to be monitored online. In Effluent and Sewage treatment also pH has to be maintained. For these purposes, online pH Electrodes and their Controllers are essential..

We provide the glass tube type Online pH Electrode along with the holder.

Technical Specifications:

Type of Electrode                      :  Glass Tube type Online pH Electrode

Process Connections                :  3/8” BSP (M)

Electrode Holder                       :  PVC / PTFE or, SS

Electrode Holder Mounting        :  ¾” BSP (M)

Range                                       :  0 to 14 pH

Resolution                                 :  0.1

Max. Temperature                     :  Electrode with PVC top cover up to 60 degree C

                                                     Electrode with PTFE top cover up to 100 degree C

                                                     Electrode with SS top cover up to 120 degree C

Max. Pressure                           :  6 bar

Electrical connection                  :  Five meters cable with BNC connector

Approx. Length of the assembly : 120 mm

The Digital pH Indicator or, Controller or, Transmitter unit also can be provided along with this Electrode.

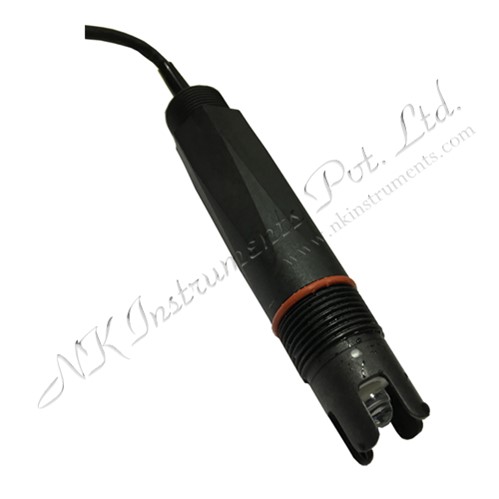

pH Electrode with PVC Protection

Catalogue Enquiry

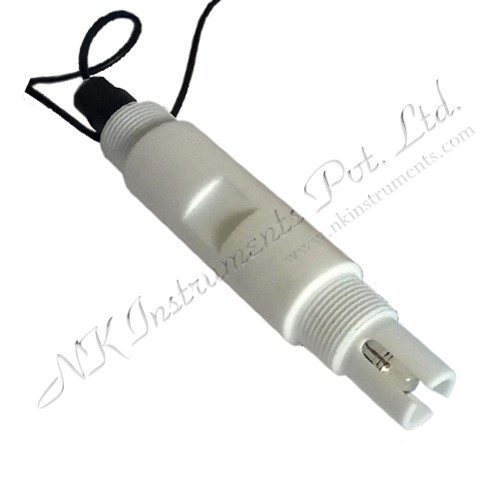

pH Indicating Controller with pH Electrode in PVC holder

Catalogue Enquiry
