Rotating Paddle type Level Switch

We have Rotating Paddle type Level Switches which are recommended only for dry mediums like powder, granuls, pallets etc.

Salient Features:
Flexible coupling (optional as per application) Robust, dust and watertight housing . Extended Probe possible. Extended life by motor shut off design. sealed bearings. Interchangeable paddle assemblies, Magnetic Clutch mechanism

Technical Specifications (Standard):
SWITCHING UNIT:
Housing: Aluminum, weather proof, powder coated. Integral with The probe
Cable entry: 2 nos.
Ambient temperature: 0 ° C to +60° C
Power consumption: 1.9 VA
Mains Voltage: 230/110 V AC (+/-15%), 50 Hz
Output: 1 sets of potential free c/o contacts rated at 5 amps, 230 V AC for non-inductive loads.
Switch status display:Green LED shows Normal, Red LED shows alarm condition.
Mounting : Screwed – 1 ½” BSP (standard) Or Flanged (optional)
Sense rod : Stainless steel, 12 MM DIA
Paddle : 1 – 4; Paddles depending upon application.
Operating Temp in : 80 deg for the standard unit. 200°C ON REQUEST

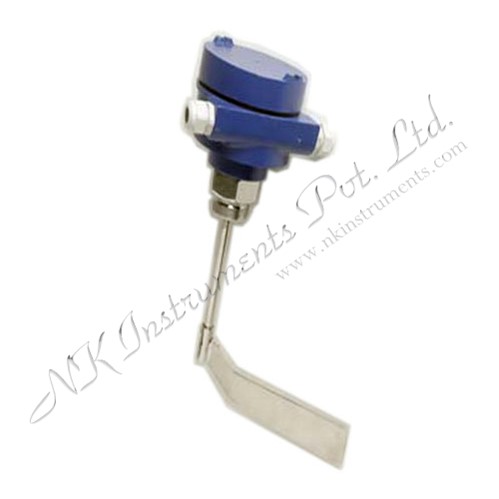

Level Switch - Rotating Paddle type with single Vane Paddle

Catalogue Manual Enquiry

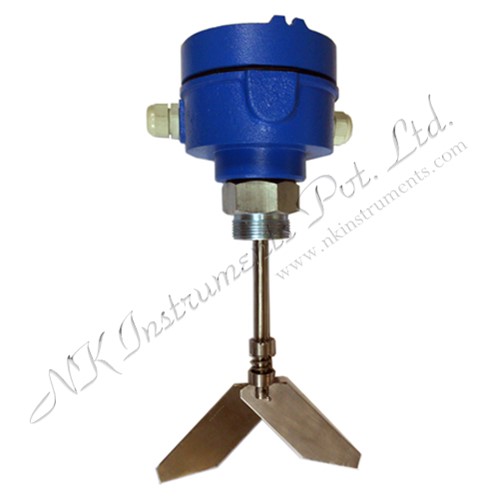

Level Switch - Rotating Paddle type with Folding Scissor

Catalogue Manual Enquiry

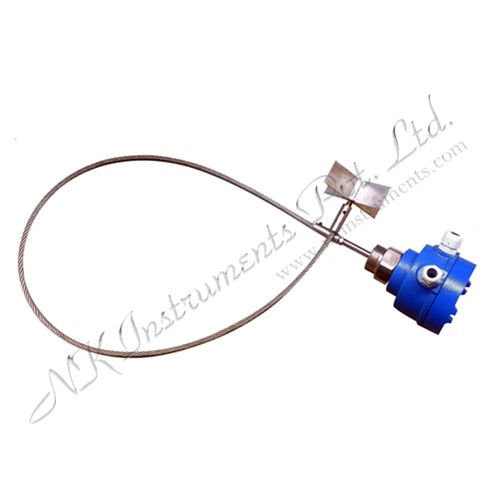

Level Switch - Rope type Rotary Paddle

Catalogue Manual Enquiry
