Level Transmitters - Submersible Hydrostatic type

We have Hydrostatic type Level Transmitters which are suitable for installations through very narrow nozzles. Hydro Static Level Transmitters are very easy to install and handle.

Range up to 20 bar (200 mH2O)

Accuracy: 0.1%FS, 0.2% FS, 0.4 %FS and 1%FS.

Stainless steel submersible

Quick response time < 25 to 30 ms

High long-term stability

Excellent repeatability

Active compensation for temperature drifts

4 ... 20 mA and Voltage outputs

External zero setting

ATEX II 1G, II 2G and II 1D

Lloyd‘s Register Approval

This Instrument are a pressure transmitter available in 4 ... 20 mA current loop or in voltage output signal versions. This transmitter offers a very high accuracy over a wide temperature range, an excellent repeatability and very long term stability.

The piezo-resistive silicon sensor is anodic bonded on a very stable glass base, which is attached to a stainless steel construction. This assembly guaranties an excellent thermal isolation.

The sensor is isolated from the process by a stainless steel diaphragm (1.4435 / 316L) and a filling liquid. The electronics is located within the hermetically sealed transmitter housing which give the Instrument an excellent resistance to shock and vibration. Protection class IP 68.

Because these are small and submersible is universally suitable for all kinds of hydrostatic level measurements. It is the ideal product for environments such as in the food and beverage industries, water level measurement and all kind of standard industrial and processing applications.

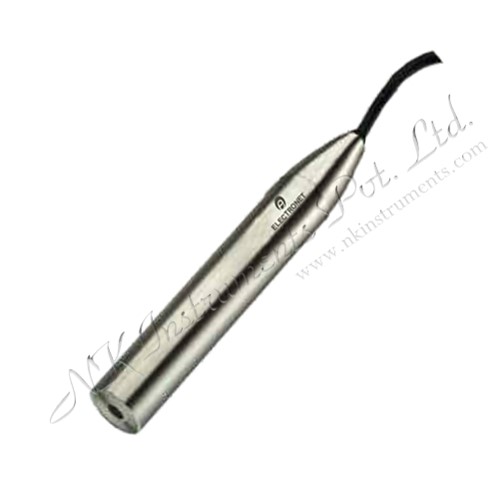

Hydrostatic Level Transmitter
