Float & Board Guided type Level Gauges are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanks where there are chances of turbulent liquid in the tank.

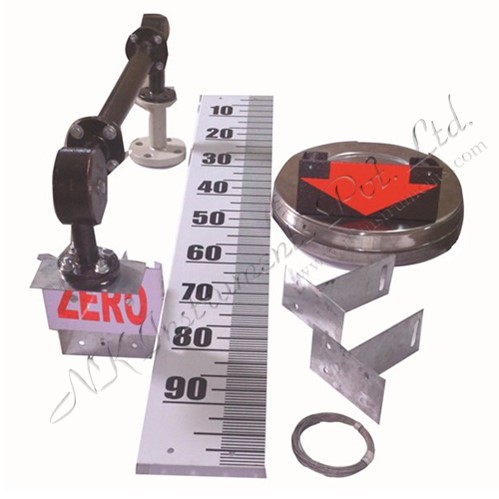

Float & Board Type Level Gauges with Guide Wires for non-pressurized tanks
Range : 2 meters up to 25 meters
Gauge Board : Aluminum power coated White, size 6" wide with Black color marking
Float wire : 2mm dia.x SS 304 /SS 316 (multistrand) / 6mm dia. x PP (multistrand)
Guide Wires : 2mm dia.x SS 304 /SS 316 (multistrand) / 6mm dia. x PP (multistrand)
Float : SS 316, 300 mm dia X 75 mm height.
Sheave assembly : Aluminium Housing, 2 nos. SS pulleys with Teflon bushes
Indicator assembly : MS Painted
Brackets for scale and indicator: MS Powder coated
Nuts & Bolts : Zink plated MS
