Vibrating Fork type Level Switches

Vibrating Fork type Level Switches are single point level switches. Vibrating Fork type Level Switches are also known as Tuning Fork Level Switches. The electronics control unit is integral with the sensing probe. Fail safe logic is field selectable.

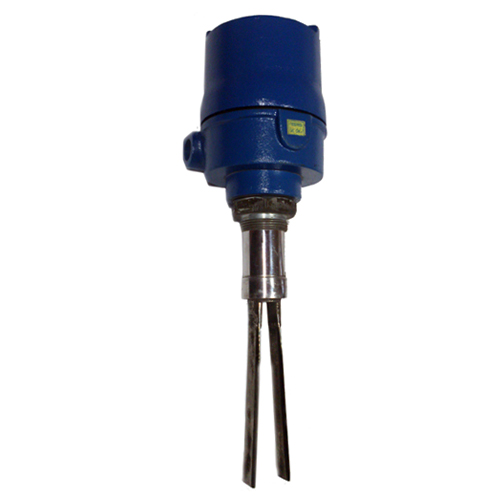

There ate two type of Vibraing Fork Level Switches - Vibraing Fork for Solids

Vibrating Fork for Low Density material & Liquids

Housing                     : Cast Aluminium Weatherproof

Mains  :                      : 230 V AC, 110 V AC or, 24 V DC

Output :                     : 2 set of C/O contacts rated at 5 amps, 230 V AC for resistive loads.

                                                or. PNP NO

Switching Delay:       : 2 sec to 20 Sec ( adj.) for probe covered and uncovered (OPTIONAL)
