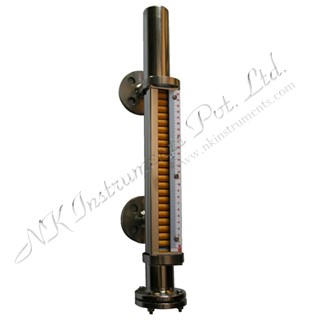

Follower Capsule type Level Gauges are suitable for Non-Magnetic Fluids only.
The follower is actuated by a magnetic float, which moves with the liquid level in the tank.
MOC of Float : SS 316 or, specific on request
Level Indication : can be min 300 mm up to 1500 mm. (or, special as per client''s requirement)
Display type : Continuous level indication by Red colored follower magnet
Level Indicating Scale : one no. Aluminum Scale of 25 mm width with 10 mm intervals
Mounting : From side of the tank using the Bypass assembly or, on the top of the tank.

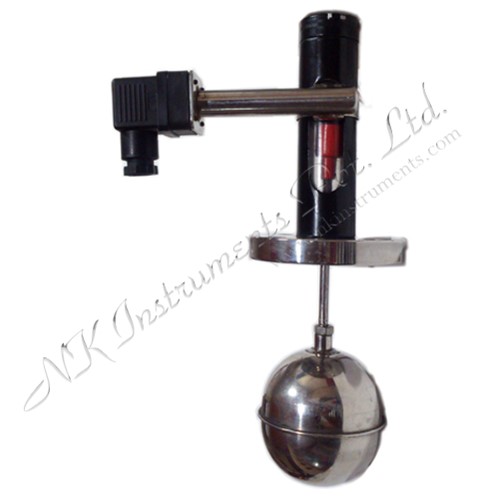

Reed Switches : Externally settable Reed Switches can be provided with DIN plug or, in Flameproof housings
(max. up to 4 nos.)
